Need WD7500KMVV Pinout

WD External Drives WD Portable Drives
1

Working on a Passport for a client, and I’ve found a couple things for the pinout of the drive, but I can’t find anything specifying if there’s a specifically different pinout for this drive. Can anyone tell me which specific spots are RX+, RX-, TX-, and TX+? Trying to obtain the data in a timely manner, so checking all possible combinations is a last resort.

Checked this already, good base information, but different model:

http://tidelog.kitamuracomputers.net/2013/05/31/recovering-data-from-wd-elements-drive-when-the-usb-connector-is-broken/

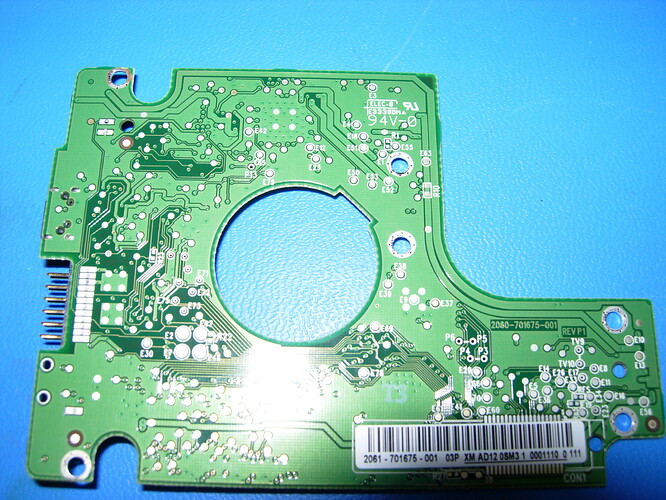

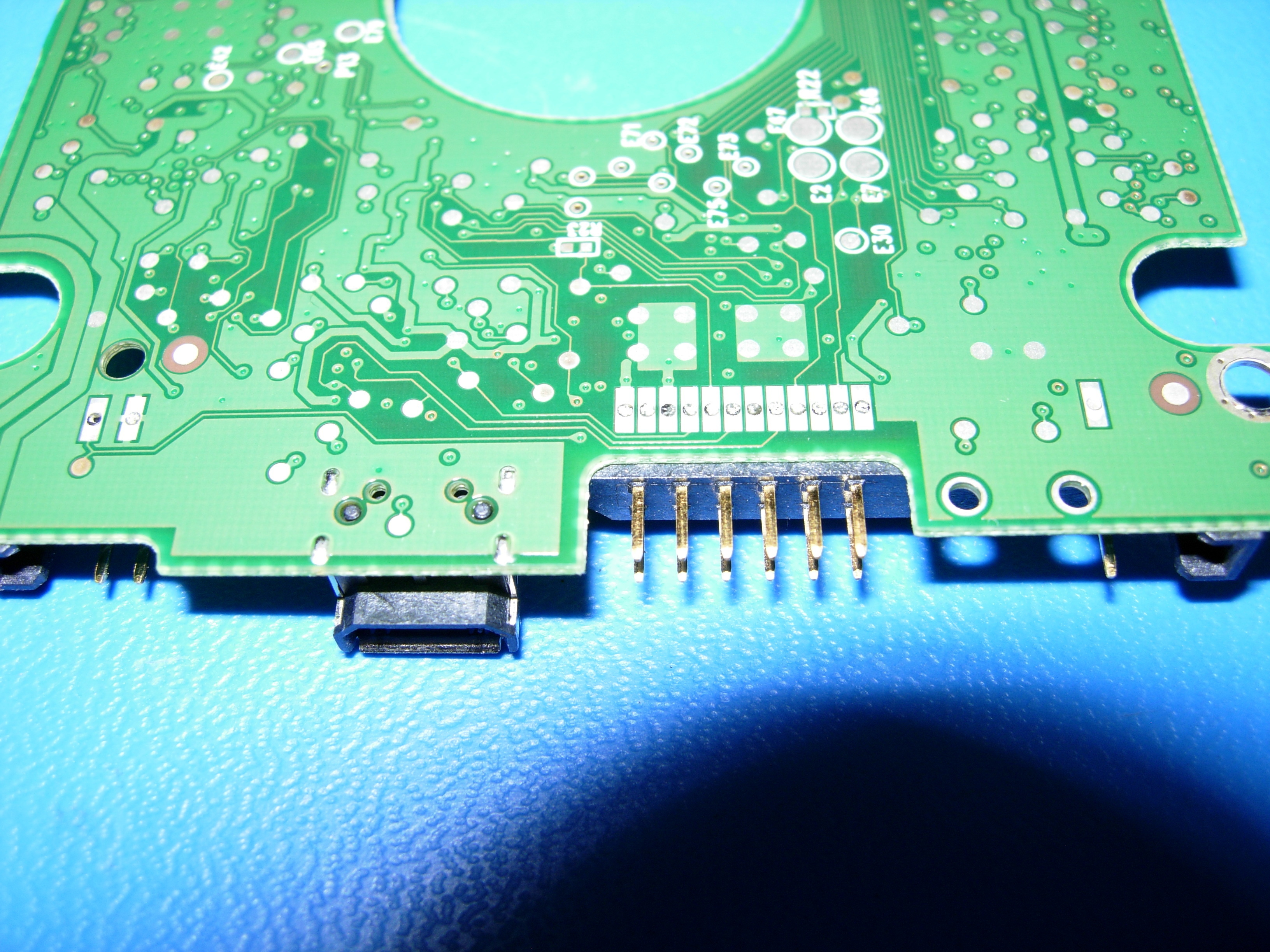

Here are pictures from another of the model with which I am working. Mine has been soldered and am working towards solution, just need confirmation on specific pins.

DSCN0162.JPG3264×2448 2.18 MB
DSCN0163.JPG3264×2448 1.9 MB

2

here is the pinout for you, I hope this helps

Here is the link to the full blog post on this topic

3 Likes
3

You, sir, are a saint. Thank you very much.

4

Hey no problem, please click on the Kudos Star on the left if you found my post useful. I would really appriciate that! :slight_smile:

good luck

PS: and I think we are using identical ESD matt too
