Does anyone know what the PIN designations are on the DL4100's serial port on the PCB?

My Cloud OS 5 Personal & Network Attached Storage My Cloud DL Series
1

Does anyone know what the PIN designations are on the DL4100’s serial port on the PCB?
Which ones are GND, TX, RX and VCC

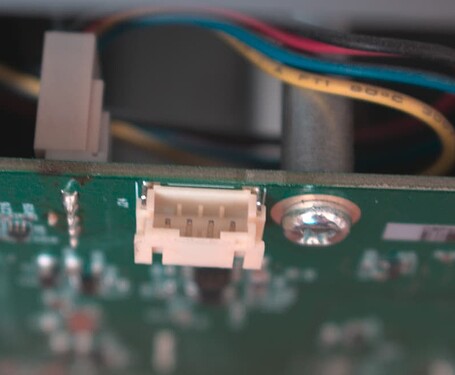

Serial port (A)
Serial port (A)796×655 26.8 KB

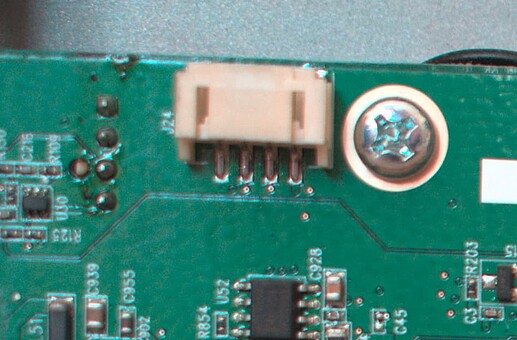

Serial port (B)
Serial port (B)947×624 68.8 KB

5

Thanks. Just which way round. Are the pin assignments in the same order as the PR4100?

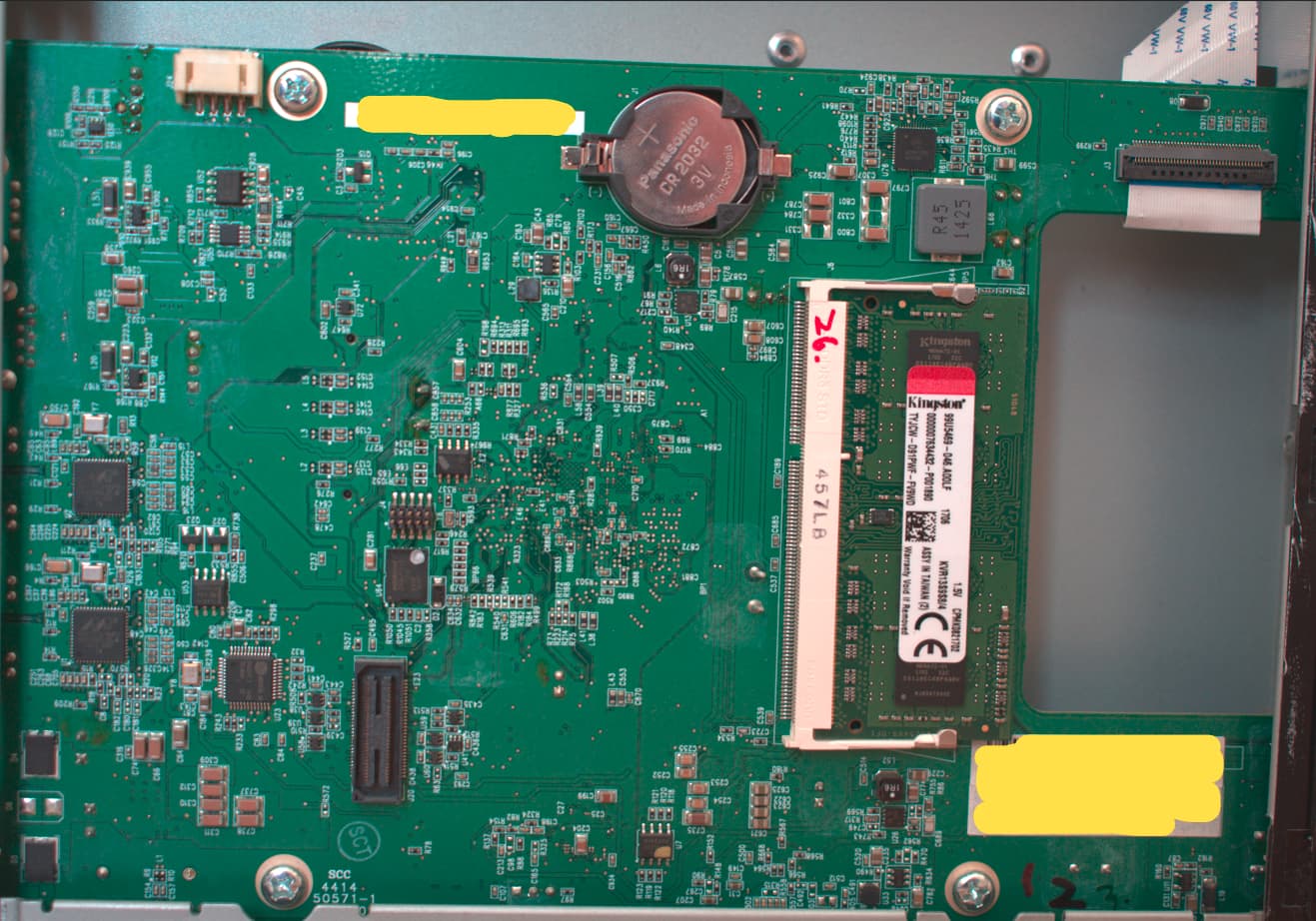

DL4100 PCB

image1317×922 177 KB

7

Thank-you. :slight_smile:

8

Don’t know why @dswv42 has deleted the posts, but the advise was that it is the same sequence of the PR4100 which is: GND - TX - RX - VCC

Voltage being 3.3volts and NEVER connect anything to VCC.

11

I can’t find the old information here or in my files

but years ago for this or another NAS unit – I thought we found a cable to fit the socket and a adafruit small board for TTL to RS-232

needed it when we started having Atom CPU problems
